UNIdek HDPE

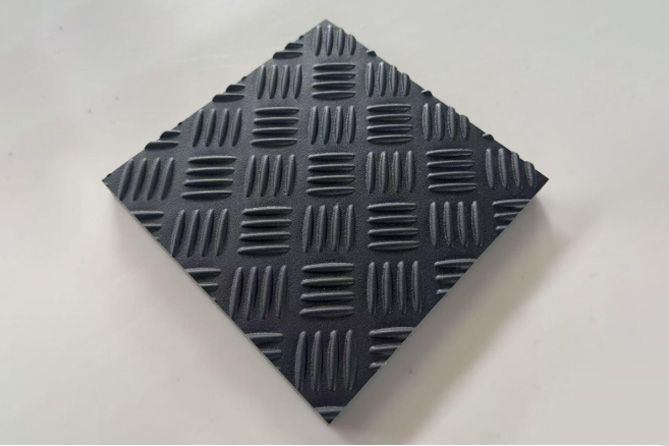

Reverse Pattern

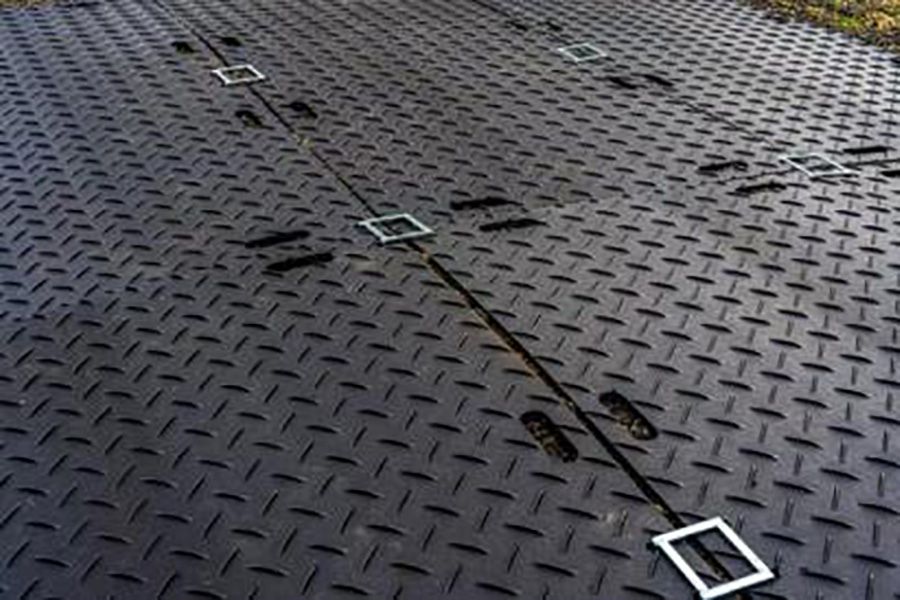

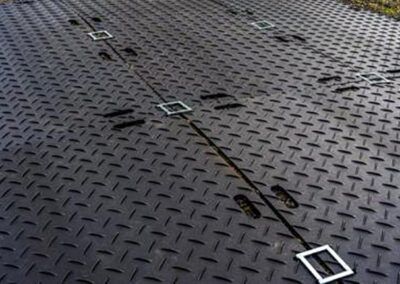

Connections
Connection Option 1
Connection Option 2

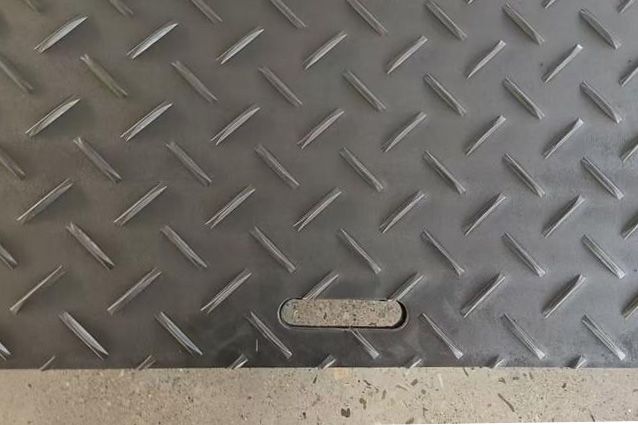

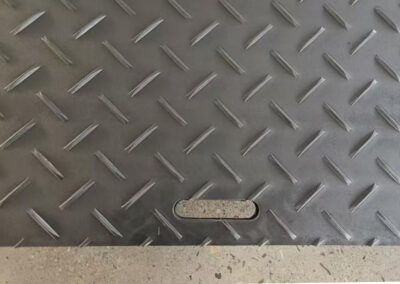

Hand Hole

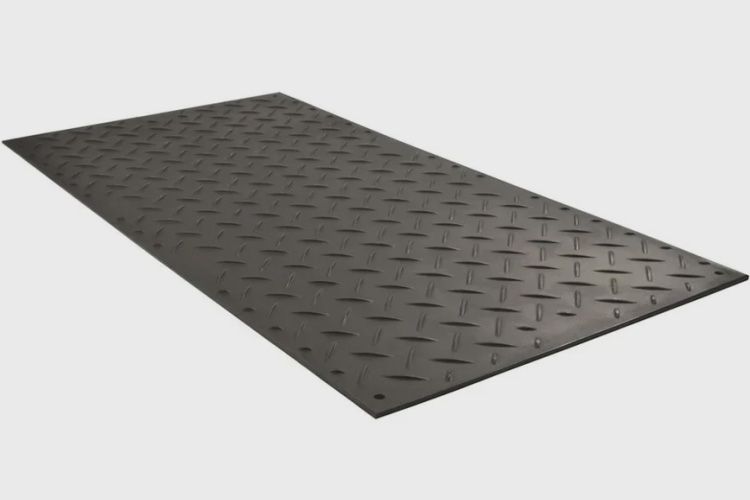

Without Hand Hole
MD25H / MD25
Medium Duty
• Highly cost-effective, ideal for projects on a budget.
• Durable and long-lasting, designed for repeated use.
• Built for strength in demanding conditions.
• Double-sided pattern for multiple uses
| Material | Recycled or New HDPE |
| Overall Size | 7.87’ x 3.94’ x 0.47” 2.4m x 1.2m x 12mm |
| Surface Size | 31.00ft2 2.88m2 |
| Weight | 75.9lbs 34.5kg |
| Max Weight Loading* | 150psi 45t |
| Usage Scenarios | Construction sites, mines, railway or ports trestle roads, airports |
| Connector | Dual or Quad |
| 40’GP Container | 456pcs |
MD50H / MD50
Medium Duty
• Tough and durable, ideal for medium-duty applications.
• Versatile and cost-effective for diverse projects.
• Easy to lay and diverse connections.
• Double-sided pattern for multiple uses.
• MD50H is with hand holes.
| Material | Recycled or New HDPE |
| Overall Size | 7.87’ x 3.94’ x 0.98” 2.4m x 1.2m x 25mm |
| Surface Size | 331.00ft2 2.88m2 |
| Weight | 158.4lbs 72kg |
| Max Weight Loading* | 300psi 90t |
| Usage Scenarios | Construction sites, mines, railway or ports trestle roads, airports |
| Connector | Dual or Quad |
| 40’GP Container | 216pcs |

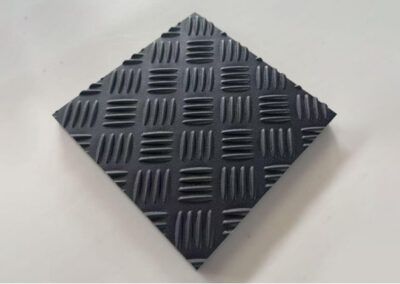

Reverse Pattern

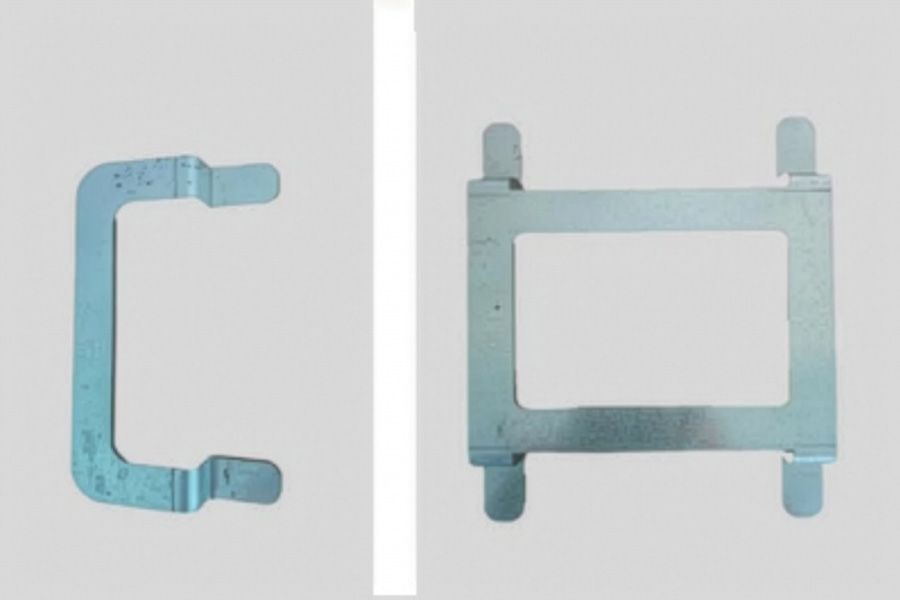

Connection Options
High Density Polyethylene (HDPE)
HDPE is a high-performance industrial thermoplastic featuring excellent strength, impact resistance, durability, and chemical stability. It is lightweight, abrasion-resistant, waterproof, and low-maintenance.
As a ground protection mat material, HDPE delivers superior load-bearing capacity, stable traction, and effective surface protection across muddy,
uneven, and challenging terrains.
PROPERTY |
TEST STANDARDD (BS) |
TEST STANDARD (ASTM) |
UNIT |
VALUE |
Density |
BS EN ISO 1183 |
ASTM D 1505 |
g / cm³ |
0.96-0.98 |
Water absorption |
BS EN ISO 62 |
DIN EN ISO 62 |
% |
Under 0.01 |
Tensile strength @ yield |
BS EN ISO 527-1/-2 |
ASTM D 638 |
MPa |
21 |
Tensile strength @ break |
BS EN ISO 527-1/-2 |
ASTM D 638 |
MPa |
35 |
Elongation at break |
BS EN ISO 527 |
DIN EN ISO 527 |
% |
>1000 |
Flexural modul |
BS EN ISO 178 |
ASTM D 790 |
MPa |
850 |
IZOD impact |
BS EN ISO 180 |
ASTM D 256 |
ft-lbs/in2 |
Non-break |
Vicat softening point |
BS EN ISO 306 |
ASTM D 1525 |
°C |
150 |
DSC melting temperature |
BS EN ISO 11357-1/-3 |
ASTM D 2117 |
°C |
131 |
ULTRAdek NEW HDPE

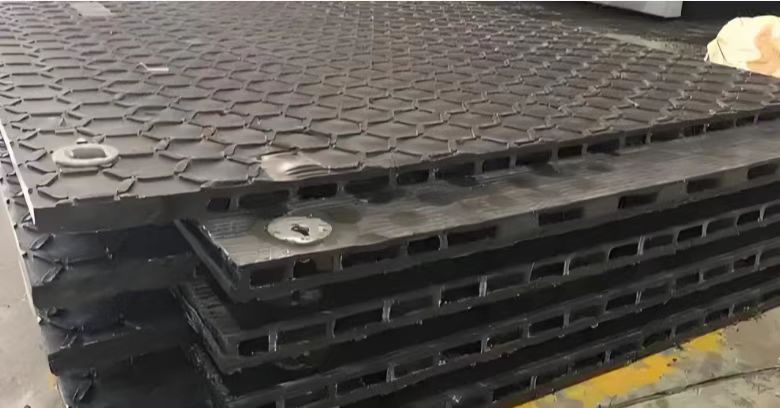

HD180
Heavy Duty
• Hollow design, lightweight for easy transport and installation.
• Unique bolt system keeps connections secure under heavy use.
• NEW HDPE material, available in various colors.
| Material | New HDPE |
| Overall Size | 7.15’ x 13.71’ x 3.9” 2.18m x 4.18m x 100mm |
| Surface Size | 7.15’ x 13.71’ x 3.9” 2.18m x 4.18m x 100mm |
| Weight | 1014.3lbs 460kg |
| Max Weight Loading* | 1000psi 300t |
| Usage Scenarios | Heavy machinery, construction sites, mines, railway or ports trestle roads, airports |
| Connector | Included |
| 40’GP Container | 42pcs |
*weight loading represents maximum capacity for stable ground that’s firm & flat
Ultra-High Molecular Weight Polyethylene
UHMWPE is a high-performance thermoplastic with extremely long molecular chains. It offers more outstanding wear resistance, very low friction, excellent impact strength (unbreakable at low temperatures), good chemical resistance and self-lubrication. It is widely used in industrial, mechanical and engineering applications.
PROPERTY |
TEST STANDARDD (BS) |
TEST STANDARD (ASTM) |
UNIT |
VALUE |
Density |
BS EN ISO 1183 |
ASTM D792 |
g / cm³ |
0.935–0.965 |
Melting Point |
BS EN ISO 3146 |
ASTM D3418 |
°C |
130–136 |
Continuous Service
|
– |
– |
°C |
-269 to +82 |
Heat Deflection
|
BS EN ISO 75 |
ASTM D 638 |
°C |
~85 |
Tensile Yield Strength |
BS EN ISO 527 |
ASTM D638 |
MPa |
20–23 |
Tensile Strength at Break |
BS EN ISO 527 |
ASTM D638 |
MPa |
35–45 |
Elongation at Break |
BS EN ISO 527 |
ASTM D638 |
% |
300-400 |
Flexural Modulus |
BS EN ISO 178 |
ASTM D790 |
MPa |
600–700 |
Izod Impact Strength
|
BS EN ISO 180 |
ASTM D256 |
– |
ASTM D256 |
Shore D Hardness |
BS EN ISO 868 |
ASTM D2240 |
– |
60–65 |
MIDIdek UHMWPE

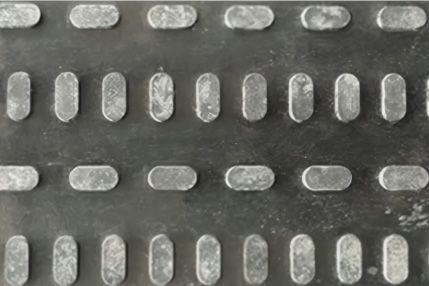

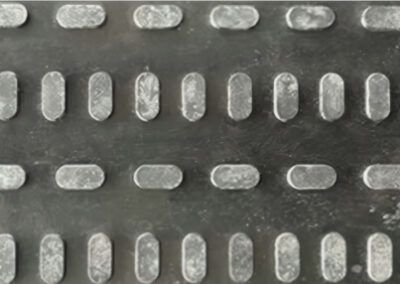

Pattern 1

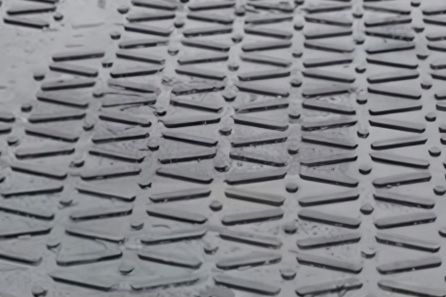

Pattern 2
MH80
Medium Heavy Duty
• Covers more ground with fewer mats for efficient setup.
• Durable UHMWPE material construction with quick-connect bolts for secure installation.
• Double-sided pattern for pedestrians and heavy vehicles.
| Material | Recycled or New UHMWPE |
| Overall Size | 6.56’ x 13.12’ x 0.98” 2.0m x 4.0m x 25mm |
| Surface Size | 86.11ft2 8.00m2 |
| Weight | 440lbs 200kg |
| Max Weight Loading | 500psi 150t |
| Usage Scenarios | Medium to heavy machinery, construction sites, mines, railway or ports trestle roads, airports |
| Connector | Included |
| 40’GP Container | 138pcs |
*weight loading represents maximum capacity for stable ground that’s firm & flat
MAXIdek UHMWPE
The MAXIdek is also available without the overlap feature – please ask for details

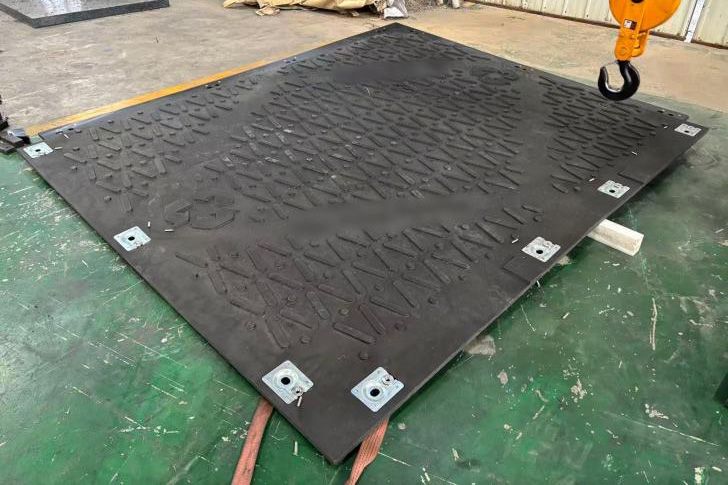

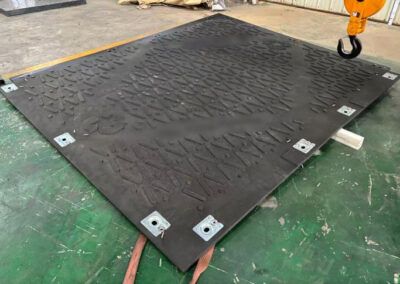

Pattern

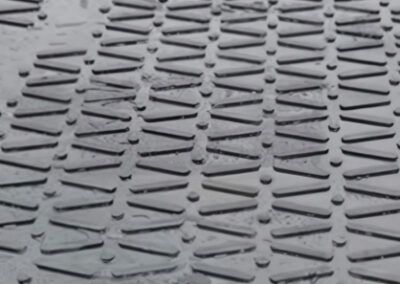

Pattern 2
0HD200
Overlap Heavy Duty
• Overlapping edges create a seamless, uniform surface.
• Durable UHMWPE construction with quick-connect bolts for secure installation.
| Material | Recycled or New UHMWPE |
| Overall Size | 8.2’ x 9.84’ x 1.5” 2.5m x 3.0m x 38mm |
| Surface Size | 72.12ft2 6.70m2 |
| Weight | 572lbs 260kg |
| Max Weight Loading* | 1165psi 350t |
| Usage Scenarios | Medium to heavy machinery, construction sites, mines, railway or ports trestle roads, airports |
| Connector | Included |
| 40’GP Container | 74pcs |
*weight loading represents maximum capacity for stable ground that’s firm & flat
Connection method
Double-sided pattern for large tracks
0HD250
Overlap Heavy Duty
• Tightly jointed and suitable for various ground conditions.
• Unique bolt system keeps connections secure under heavy use.
| Material | Recycled or New UHMWPE |
| Overall Size | 6.79’ x 14.6’ x 3.9” 2.07m x 4.45m x 100mm |
| Surface Size | 98.71ft2 9.17m2 |
| Weight | 1923.9lbs 874.5kg |
| Max Weight Loading* | 1500psi 450t |
| Usage Scenarios | Medium to heavy machinery, construction sites, mines, railway or ports trestle roads, airports |
| Connector | Included |
| 40’GP Container | 28pcs |
*weight loading represents maximum capacity for stable ground that’s firm & flat
