UNI-PROP

trench strut Sizes

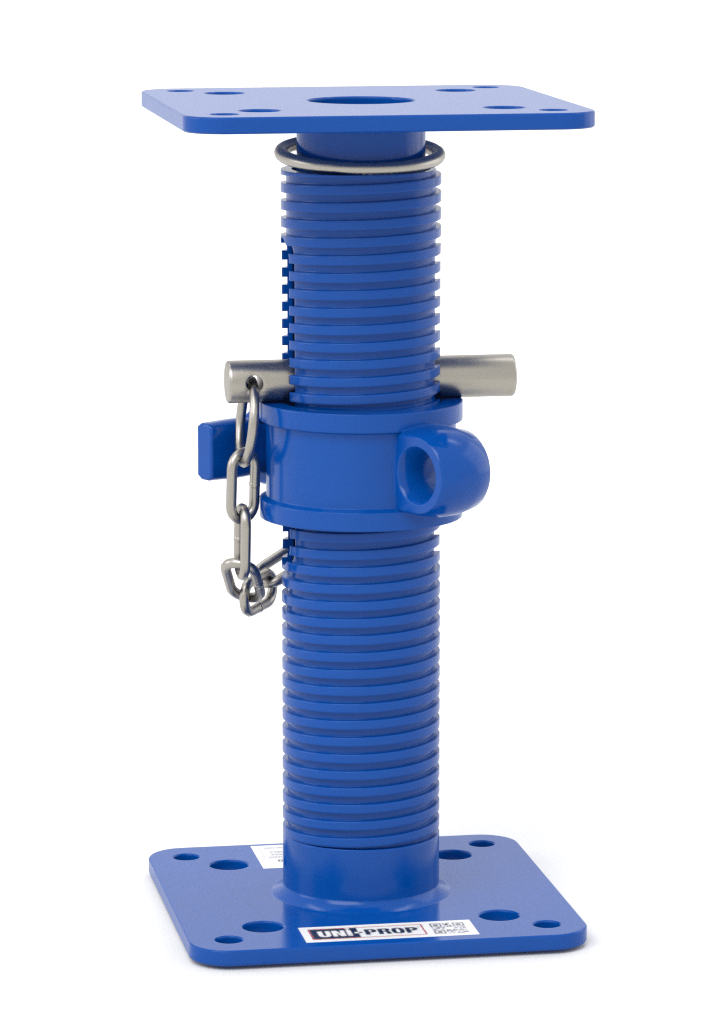

TRENCH STRUT size 0

  • Extension range: 315mm – 515mm
  • BS 4074
  • Galvanised finish
  • Foldaway handle
  • Anti-handtrap design
  • Pin Stop
  • Heavy-duty chain
  • 48.3mm diameter 3mm Q345 inner tube
  • 60.3mm diameter 3mm Q235 outer tube
  • One piece extrusion threaded section
  • Cast collar
  • 150mm sq. x 6mm flat plates as standard
  • Customisation options available
  • Weight: 5.4kg

OR PLEASE CALL 0800 2545 456

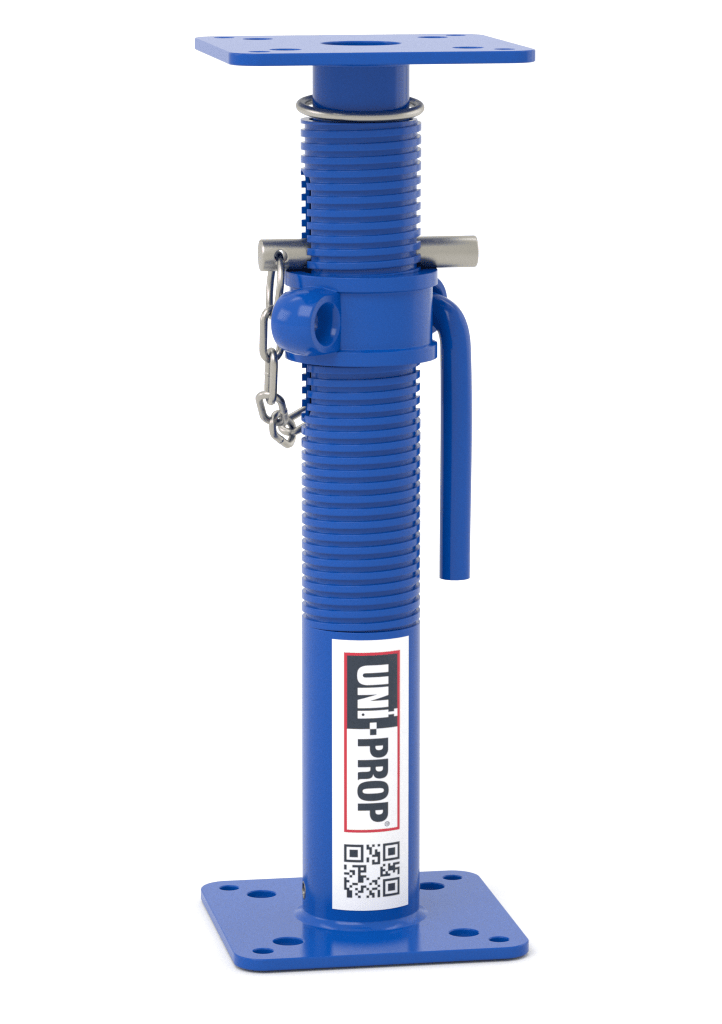

trench strut size 1

  • Extension range: 460mm – 720mm
  • BS 4074
  • Galvanised finish
  • Foldaway handle
  • Internal retaining rod
  • Anti-handtrap design
  • Pin Stop
  • Heavy-duty chain
  • 48.3mm diameter 3mm Q345 inner tube
  • 60.3mm diameter 3mm Q235 outer tube
  • One piece extrusion threaded section
  • Cast collar
  • 150mm sq. x 6mm flat plates as standard
  • Customisation options available
  • Weight: 6.4kg

OR PLEASE CALL 0800 2545 456

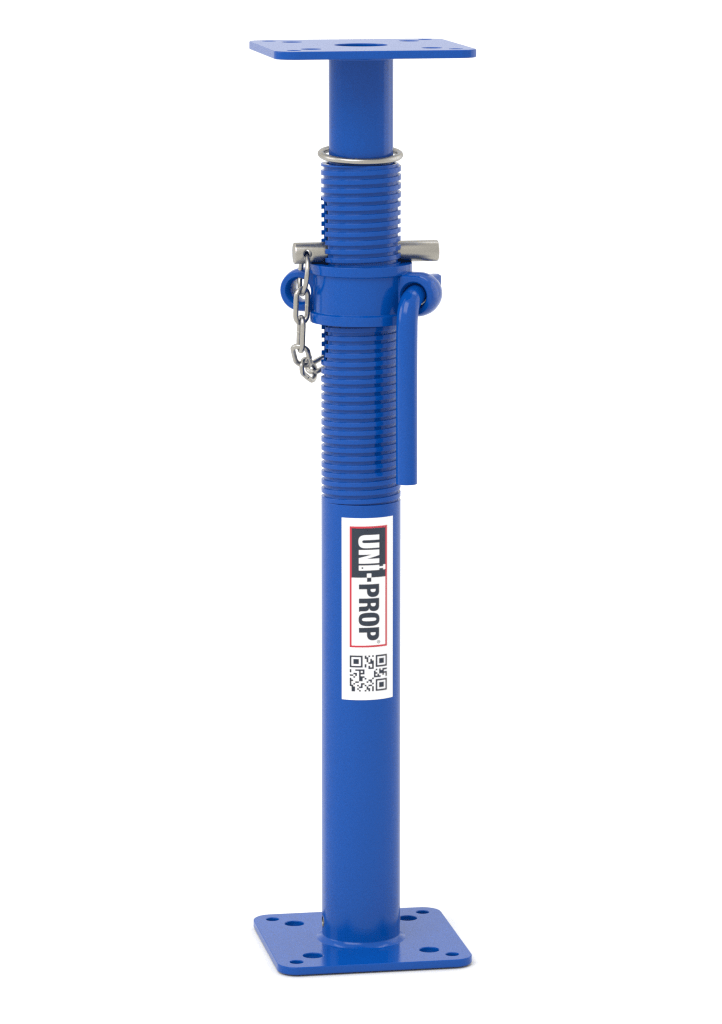

trench strut size 2

  • Extension range: 690mm – 1120mm
  • BS 4074
  • Galvanised finish
  • Foldaway handle
  • Internal retaining rod
  • Anti-handtrap design
  • Pin Stop
  • Heavy-duty chain
  • 48.3mm diameter 3mm Q345 inner tube
  • 60.3mm diameter 3mm Q235 outer tube
  • One piece extrusion threaded section
  • Cast collar
  • 150mm sq. x 6mm flat plates as standard
  • Customisation options available
  • Weight: 8.0kg

OR PLEASE CALL 0800 2545 456

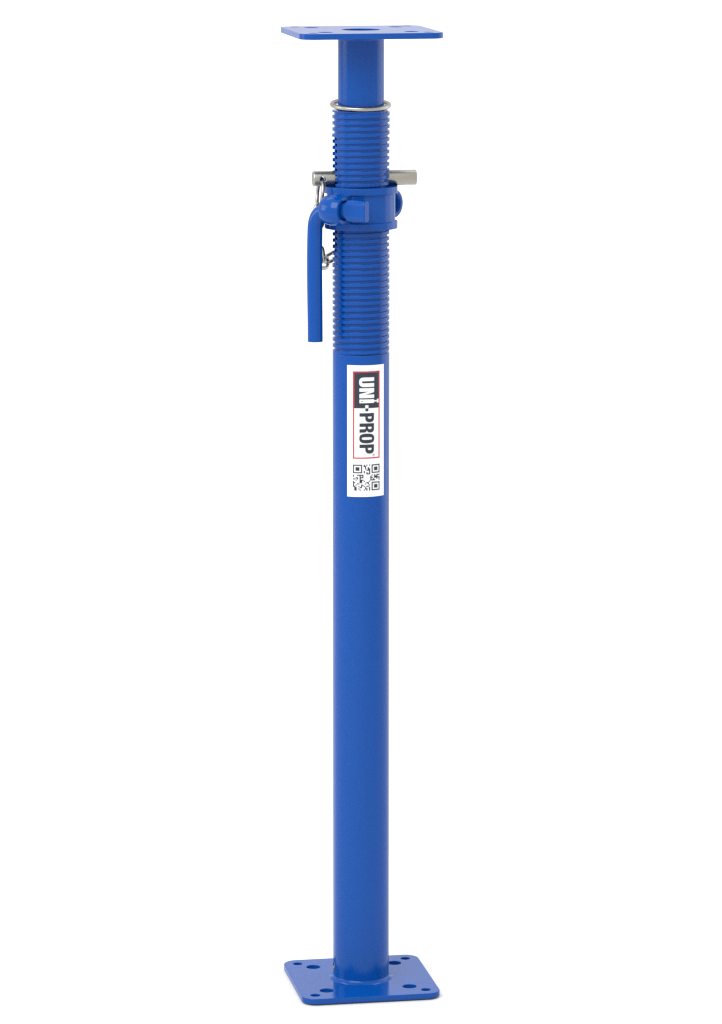

trench strut size 3

  • Extension range: 1030mm – 1780mm
  • BS 4074
  • Galvanised finish
  • Foldaway handle
  • Internal retaining rod
  • Anti-handtrap design
  • Pin Stop
  • Heavy-duty chain
  • 48.3mm diameter 3mm Q345 inner tube
  • 60.3mm diameter 3mm Q235 outer tube
  • One piece extrusion threaded section
  • Cast collar
  • 150mm sq. x 6mm flat plates as standard
  • Customisation options available
  • Weight: 10.5kg

OR PLEASE CALL 0800 2545 456
